TRACTOR WHEEL ASSEMBLIES, BEARINGS AND SEALS

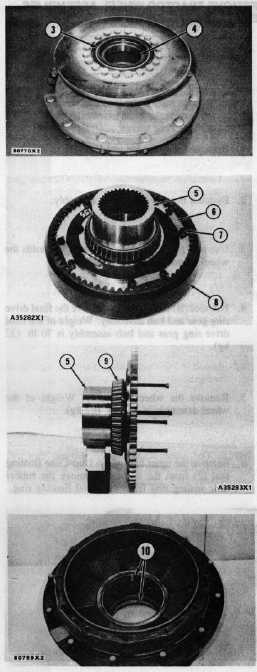

Remove the outer half of the Duo-Cone floating
seal (3) and the toric sealing ring retainer from
the wheel assembly.
The toric sealing ring retainer must
be removed evenly or damage to the
retainer will result.
Remove the rubber toric sealing ring from the
metal floating ring.
Remove the O-ring seal from the toric sealing
Remove the inner bearing cone (4) from the
Remove bolts (7), locks (6) and the four plates
that hold hub assembly (5) and ring gear (8)
Remove hub assembly (5) from ring gear (8).
Remove the bushing from hub assembly (5).
Install four 3/8"-16 NC forcing screws in hub
assembly (5). Tighten the forcing screws until
they make contact with bearing cone (9).
Tighten the forcing screws evenly to remove the
bearing cone from the hub assembly.
Remove the inner and outer bearing cups (10)
from the wheel assembly.
