TM 5-3825-226-24
HITCH
REMOVE HITCH
Tools Needed
A
B
2P8287
Box Wrench
1
2P8286
Adapter
1
2P8285
Tubular Arm
1
FT600
Cable Saver
1
start by:
a)
separation of tractor and water distributor.
1.

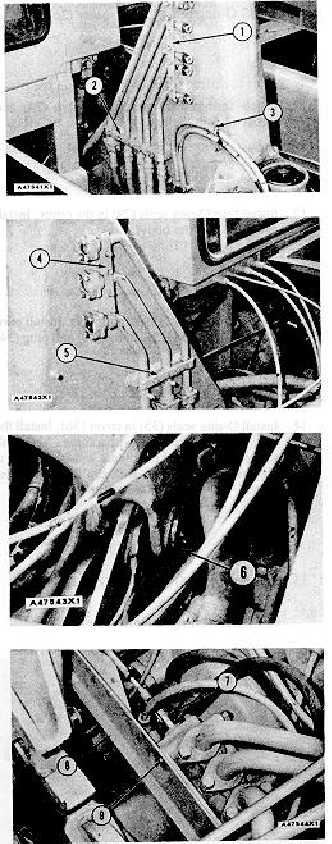

Remove four bolts (3) and clamps (1) and (2)
from left side of hitch.
2.
Remove clamps (4) and (5) from right side of
hitch.
3.
Remove bolts and washer (6) from the front
horizontal pin.
4.
Remove wood blocks from each side of the
hitch and tilt it to the right. Remove cotter pin
and pin (7) from the elevator control valve.
Remove three bolts (9) and move bracket (8)
away from the hitch.
3-312
