TM 10-4130-237-14
4-21.
CARBURETOR REPLACEMENT
This task covers:
a. Removal
b. Installation
INITIAL SETUP
Equipment
Condition
Para
4-8
4-20
Condition Description
Engine stopped, power
disconnected, muffler
and housing removed.
Air cleaner elements
removed.
c.
Adjustment
Tools
General Mechanic’s Tool Kit,
item 1, appendix B
Fuel may be present in carburetor. To prevent explosion or fire, keep sparks
and open flame away from carburetor.
a. R e m o v a l

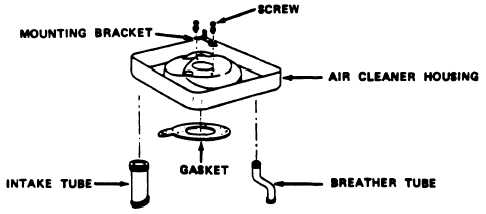

1 Remove intake tube and two breather tubes.
2 Remove two screws.
3 Remove mounting bracket, air cleaner housing, and gasket.
4-42
