TM 10-4130-237-14
4-35.
VEHICLE RECEPTACLE ASSEMBLY REPLACEMENT (CONT)

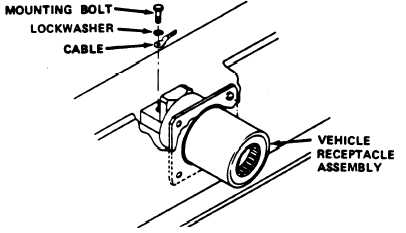

5 Remove cable mounting bolt and lockwasher from vehicle receptacle assembly.
6 Remove cable.

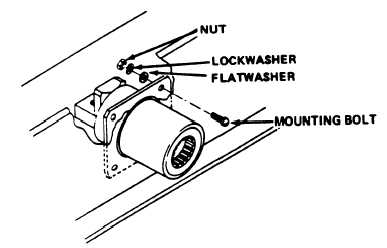

7 Remove four vehicle receptacle assembly mounting bolts, four flatwashers, four lockwashers, and four
nuts.
8 Remove vehicle receptacle assembly.
4-97
