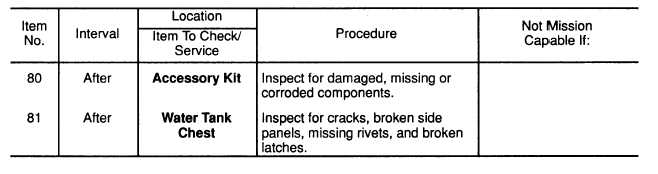

Table 2-1. Operator Preventive Maintenance Checks and Services. (cont.)
Section III. OPERATION UNDER USUAL CONDITIONS
Assembly And Preparation For Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Decals And Instruction Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation For Movement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Disconnect Couplings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-19
2-37
2-17
2-17
2-35
2-37
2-17
2-17
2.7
G E N E R AL
These procedures describe the operation, assembly, and preparation of the water distribution system in the
fill and discharge modes of operation. The fill mode of operation fills the water storage tanks and the discharge
mode draws water from the water storage tanks. The fill and discharge modes of operation can be performed
at the same time. Before attempting to operate your water distribution system, become thoroughly familiar
with the operation of all components.
2.8
UNPACKING.
Three 20K Gallon Collapsible Fabric Tanks are packaged in two reusable water tank chests. One chest con-
tains two tanks, the other contains one tank and the accessories for all three tanks. The water tank chests
are unpacked by unit maintenance.
2.9 INITIAL ADJUSTMENT.
Inspect the equipment for damage incurred during unpacking and shipment. Report any problems to unit
maintenance. Refer to 20,000 Gallon Collapsible Fabric Tank, 350 GPM Pump Assembly, 125 GPM Pump
Assembly, and Hypochlorination Unit technical manuals for initial adjustment procedures for this equipment.
2.10 QUICK DISCONNECT COUPLINGS.
NOTE
All suction and discharge hoses, gate values, and fitting used in the 40K Wa-
ter Distribution System utilize quick disconnect cam-lock couplings to per-
mit rapid connection and disconnection of system components. The follow-
ing instructions apply to all operator installation tasks.
2-17
