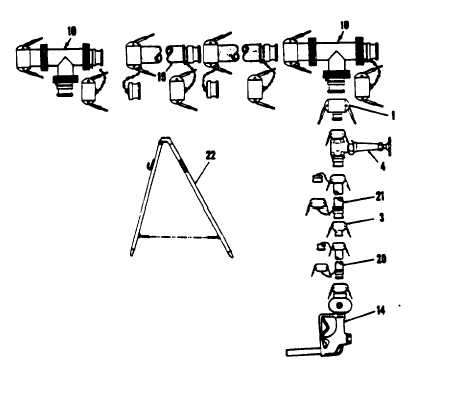

2-9.1.2 Assemble Nozzle Kits
NOTE
Item 19 consists of two (2) identical inter-connected hose assys. Simpliy assy by
connecting the hoses before performing next step.
a. Connect tee assy (10), to discharge hose assy (19).
b. Connect hose assy (19) to tee assy (10).
c. Connect tee assy (10) to female to male reducer (1).
d. Connect gate valve assy (4), to reducer (1).
e. Connect gate valve assy (4) to discharge hose assy (21).
f. Connect female to male reducer (3), to hose assy (21).
g. Connect discharge hose assy (20) to reducer (3).
h. Place spray nozzle assy (14) in position, and connect to discharge hose assy (20). Unfold nozzle stand assy
(22) and attach nozzle assy (14) to bracket on stand. Assemble three remaining nozzle connection kits and
nozzle stand assys in the same manner.
