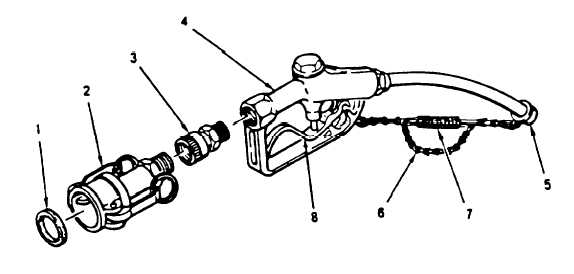

3-7. NOZZLE ASSY, INSPECT/REPLACE.
LOCATION/ITEM
ACTION
REMARKS
Remove female quick-disconnect reducer (2) from hose assy.
a. Wash the nozzle in a mild soap and water solution. Rinse in clean water and dry with a clean lint-free cloth.
b. Inspect for missing gasket (1).
c. Inspect for missing protective cap (5) chain (6) or spring (7).
d. Inspect control handle (8), female quick-disconnect reducer (2), or swivel (3).
Install female quick-disconnect reducer (2) to hose assy.
