TM 10-4130-237-14
4-31.
WATER PUMP REPLACEMENT
This task covers:
a. Removal
INITIAL SETUP
Equipment
Condition
Para
Condition Description
4-8
Engine stopped, power
disconnected, fuel line
disconnected, muffler and
housing removed.
Materials/Parts
b. Installation
Tools
General Mechanic’s Tool Kit,
item 1, appendix B
Tape, item 23, appendix E
a. Removal

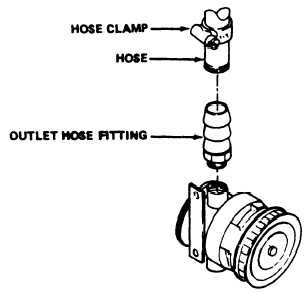

1 Pull back insulation on upper hose to expose hose clamp.
2 Loosen hose clamp. Remove hose from outlet hose fitting.
3 Remove outlet hose fitting from water pump.
4-83
