TM 10-4130-237-14
3-4.

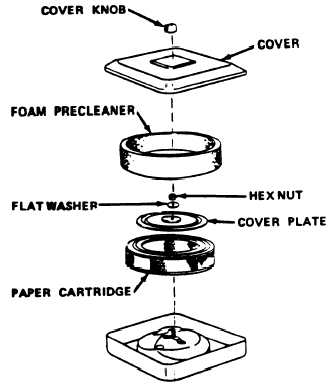

AIR CLEANER FOAM PRECLEANED SERVICE (CONT)
c.
Installation
1 Install foam precleaner around paper cartridge.
2 Install cover. Install cover knob.
3-5.
AIR CLEANER PAPER CARTRIDGE SERVICE
This task covers:
a.
Removal
b. Cleaning
c.
Installation
Materials/Parts
Liquid detergent, item 6, appendix E
a.
Removal
1 Remove cover knob. Lift off cover.
2 Remove foam precleaned from around paper cartridge and clean it (para 3-4).
3 Remove hexnut and flatwasher.
4 Lift off cover plate. Remove paper cartridge.
3-3
