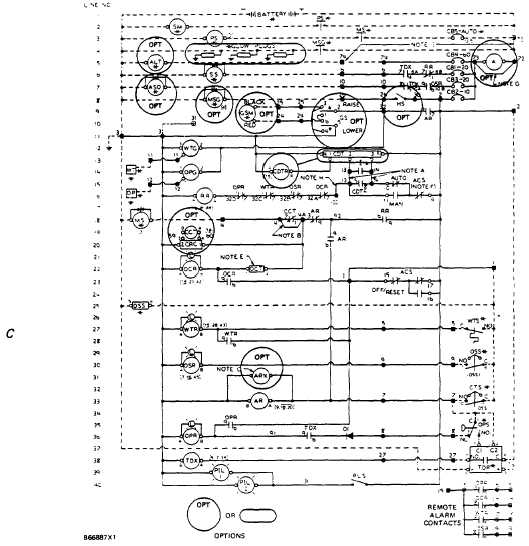

CONTROL PANEL ATTACHMENTS SYSTEMS OPERATION SCHEMATIC OF CONTROL PANEL WITH ALL ATTACHMENTS SHOWN (TYPE 5) The schematic shows the normal condition of all relays. A DC AMMETER I REMOTE START INITIATING RR RUN RELAY ACS ENGINE CONTROL SWITCH CONTACT SS SHUT-OFF SOLENOID ALT CHARGING ALTERNATOR MS MAGNETIC SWITCH (CRANK SM STARTING MOTOR AR ARMING RELAY CIRCUIT) SR SHUTDOWN RELAY ARX AUXILIARY RELAY MODULE MSG MAGNETIC SWITCH (GLOW TOR TIME DELAY RELAY ASO AIR SHUT OFF SOLENOID PLUG CIRCUIT) TDX TIME DELAY AUXILIARY BATT    BATTERY OCIR    OVERCRANK INDICATING WT WATER TEMPERATURE CB CIRCUIT BREAKER RELAY GAUGE SENDER CCM CYCLE CRANKING MODULE OCT OVERCRANK TIMER WTG WATER TEMPERATURE CCT CYCLE CRANK RELAY OP OIL PRESSURE GAUGE GAUGE CDT COOL DOWN TIMER SENDER WTIR HIGH WATER TEMPERATURE CDTR   COOL DOWN TIMER RELAY OPG OIL PRESSURE GAUGE INDICATING RELAY CRC CYCLE CRANK LOGIC TIMER OPIR LOW OIL PRESSURE WTS WATER TEMPERATURE CTS CRANK TERMINATE SWITCH INDICATOR RELAY SWITCH D DIODE OPS OIL PRESSURE SWITCH * INDICATES EQUIPMENT DSS DUAL SPEED SWITCH OSIR OVERSPEED INDICATING EXTERNAL TO CONTROL (INCLUDES CTS AND OSS) RELAY PANEL GP GLOW PLUGS OSS OVERSPEED SWITCH Ÿ TERMINAL STRIP POINT GS GOVERNOR SWITCH PIL PANEL ILLUMINATION LAMP (CONTROL PANEL) GSM GOVERNOR SYNCHRONIZING PLS PANEL LAMP SWITCH Ÿ TERMINAL STRIP POINT MOTOR PS PINION SOLENOID (GENERATOR TERMINAL BOX) HS GLOW PLUG HEAT SWITCH 262
