TM l0-4130-237-14
4-28.
FLYWHEEL AND RING GEAR ASSEMBLY REPLACEMENT/REPAIR
This task covers:
a. Disassembly
b. Assembly
INITIAL SETUP
Equipment
Condition
P a ra
Condition Description
Tools
4-8
Engine stopped, power
disconnected, fuel line
disconnected, muffler and
housing removed.
Common No. 1 Organizational
Maintenance Automotive
Maintenance and Repair
Shop Eqpt, item 2,
appendix B
Block of wood
NOTE
Repair of the flywheel and ring gear assembly consists of replacement of
worn or damaged parts.
a. Disassembly

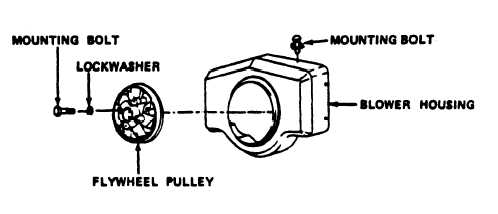

1 Remove two flywheel pulley mounting bolts and two lockwashers. Remove flywheel pulley.
2 Remove eight mounting bolts from blower housing. Remove starter cable clamp. Remove blower hous-
i n g .
4-76
